In order to do our best it’s important for us to get any feedback we can regarding our products . please Feel free to share your thoughts about the PLL organ kit, Breadboard power and bypass board , requests for kits etc. Stay creative! -Adam
0
65
188
Arcadia Electronics
Feb 22, 2022
In General Discussion
Boards for the new batch are being made, Big thanks to everyone who ordered, This batch will be shipped faster,now that we use better express shipping service. -Adam
0
57
213
Arcadia Electronics
Feb 22, 2022
In General Discussion
The relevant parts involved in the vco output are: C14 = 560pF R18 = 10k R19, R49 = 10k and Master tune potentiometer = 10k to 50k depending on how extreme you want it to get. Make sure these parts are correct and has the right value. (different values will make for a different frequency spectrum) Now for the tuning - 1. make sure the glide is off (toggle in center position) 2. Set the Master Tune pot to zero (all the way counter clockwise) 3. Set the octaves faders so that only the second upper octave is on (to have a clearer signal picked up by the tuner) 4. Hold the highest key down and use a tuner to measure the pitch 5. rotate the trimmer pot related to this key to tune in the correct note Then repeat #5 with the rest of the keys, one by one as you go, until you reach the lowest note. -Adam
0
433
676
Arcadia Electronics
Dec 11, 2021
In General Discussion

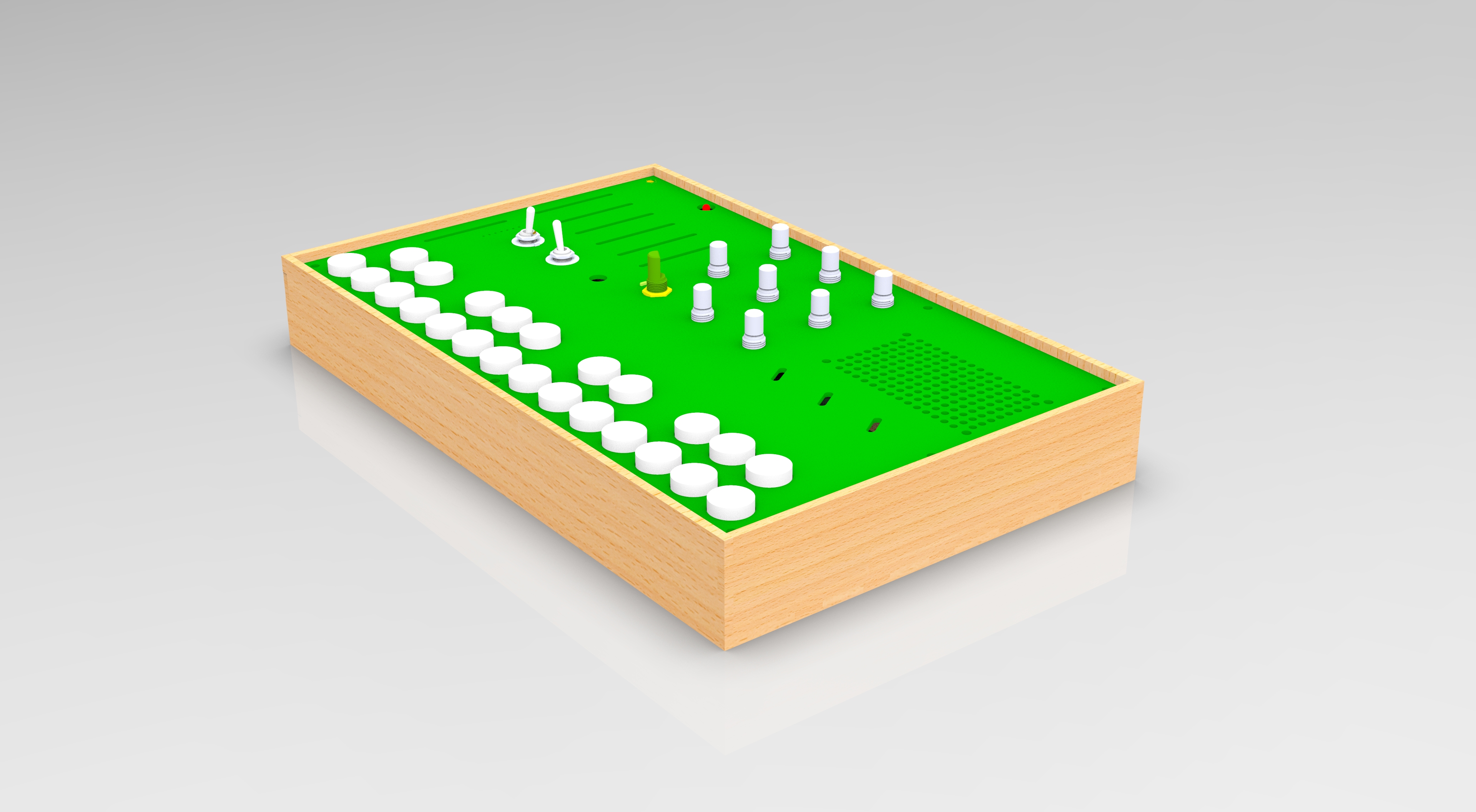

Added DXF Files for the PLL Organ Case! These can be used to laser cut an enclosure for the PLL Organ - https://www.arcadiaelectronics.com/pll-organ-kit
Added DXF Files for the PLL Organ Case! content media
